Product details

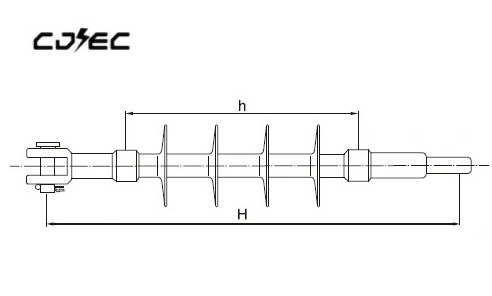

| Power Line Electrical Composite Polymer Insulator | |||||||
| Type | Rated voltage | Rated mechanical load | Spacing | Dry arcing distance | Creepage distance | Power frequency wet withstand voltage | Dry lightning impulse withstand voltage |
| (kV) | (kN) | (mm) | (mm) | (mm) | (kV) | (kV) | |
| FXBW6-10/50CT | 10 | 50 | 380 | 200 | 480 | 45 | 115 |
| FXBW6-10/70CT | 10 | 70 | 380 | 200 | 480 | 45 | 115 |
| FXBW6-10/100CT | 10 | 100 | 420 | 200 | 480 | 45 | 115 |
| FXBW6-10/120CT | 10 | 120 | 420 | 200 | 480 | 45 |
115 |
