Strain Type Stay Ceramic Insulator for Overhead Transmission Line

Product classification:

Stay insulators

Keywords:

Pin type insulators

Product Features

Product details

ANSI 54-1 Stay Porcelain isolator

ANSI 54-2 Stay Porcelain isolator

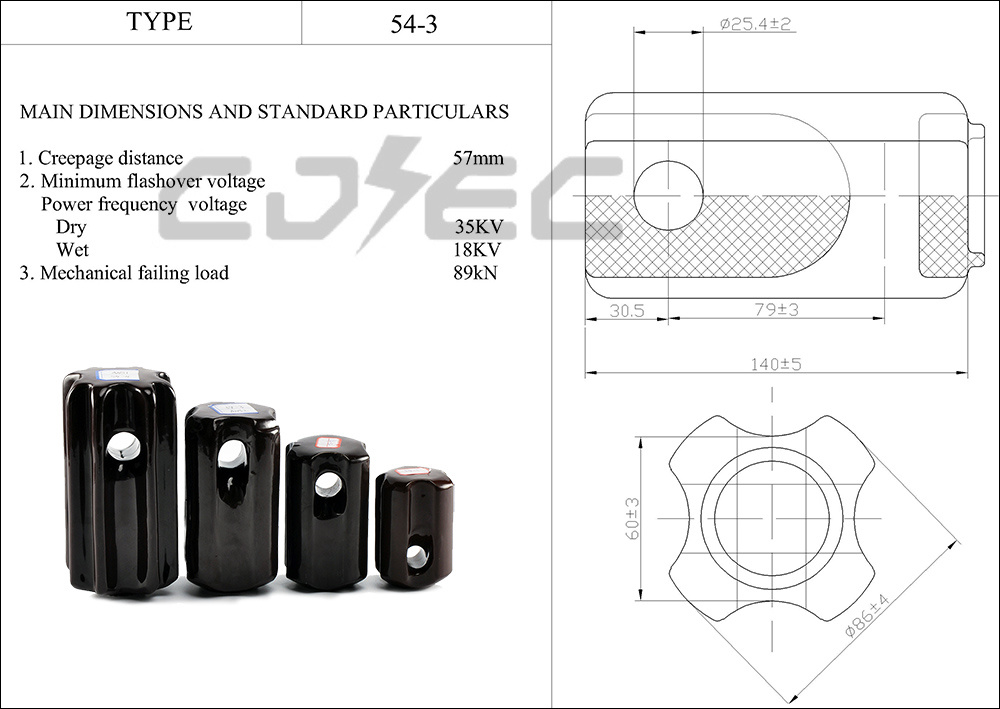

ANSI 54-3 Stay Porcelain isolator

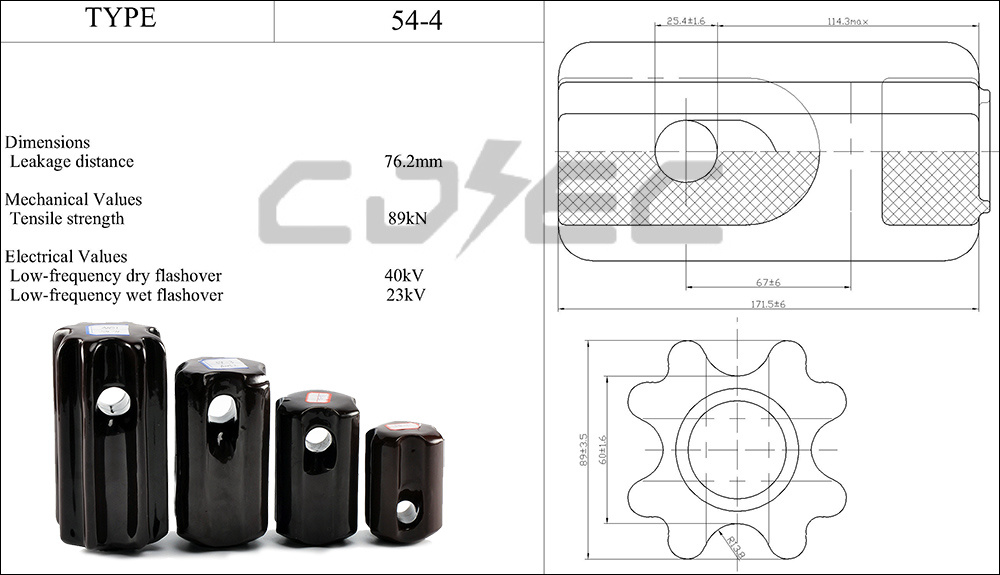

ANSI 54-4 Stay Porcelain isolator

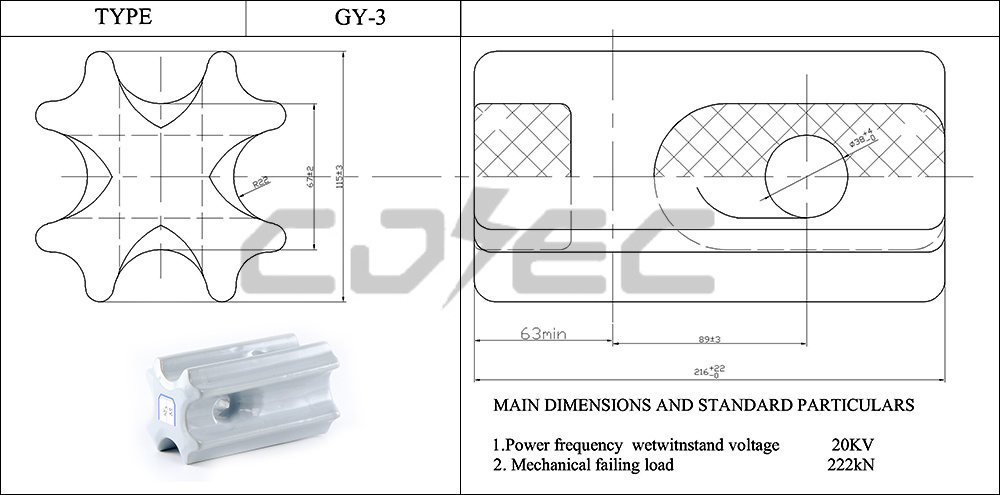

GY-3 Stay Porcelain isolator

GY-4 Stay Porcelain isolator

Stay insulators
ANSI Class		Gy3	Gy4	54-1	54-2	54-3	54-4
Dimensions
Diameter	mm
Height	mm	216	280	89	108	140	172
Creepage distance	mm	118	126	41	48	57	76
Mechanical Values
Cantilever strength	kn	222	222	45	55	91	91
Electrical Values
Low frequency dry flashover voltage	kv	50	60	25	30	35	40
Low frequency wet flashover voltage	kv	35	40	12	15	18	23
Packing and Shipping Data
Net weight,approximate	kg	4.2	5.0	0.50	0.65	1.20	1.85
