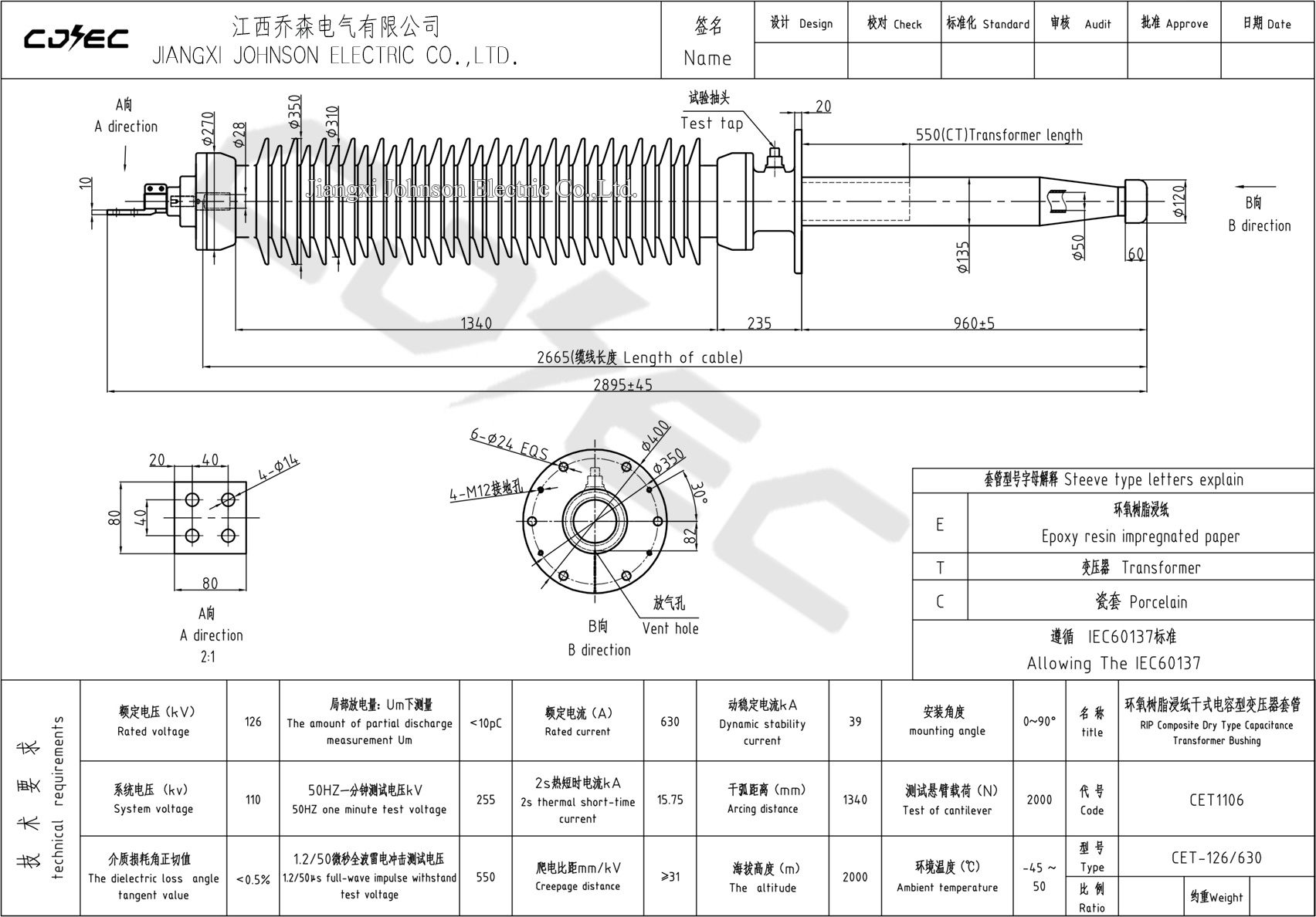

CET-126kv/630A High Voltage RIP Composite Dry Type Capacitance Transformer Bushing
C-Porcelain
E-Epoxy resin impregnated paper
T-Transformer
| TYPE | 126KV 630A BUSHING | |||
| Max. Shed Diameter(D) | mm | 350/400 | ||
| Spacing | mm | 2900 | ||
| Creepage distance | mm/kV | ≥31 | ||
| Rated voltage | kV | 126 | ||
| Rated current | A | 630 | ||
| System voltage | kV | 110 | ||
| Arcing distance | mm | 1340 | ||
| Test of cantilever | N | 2000 | ||
| mounting angle | 0~90° | |||
