Hot sale glass disc insulator for high voltage Aerodynamic type glass suspension insulator string

This glass insulators has good process control ,Very good mechanical properties
Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Product description
Parameters

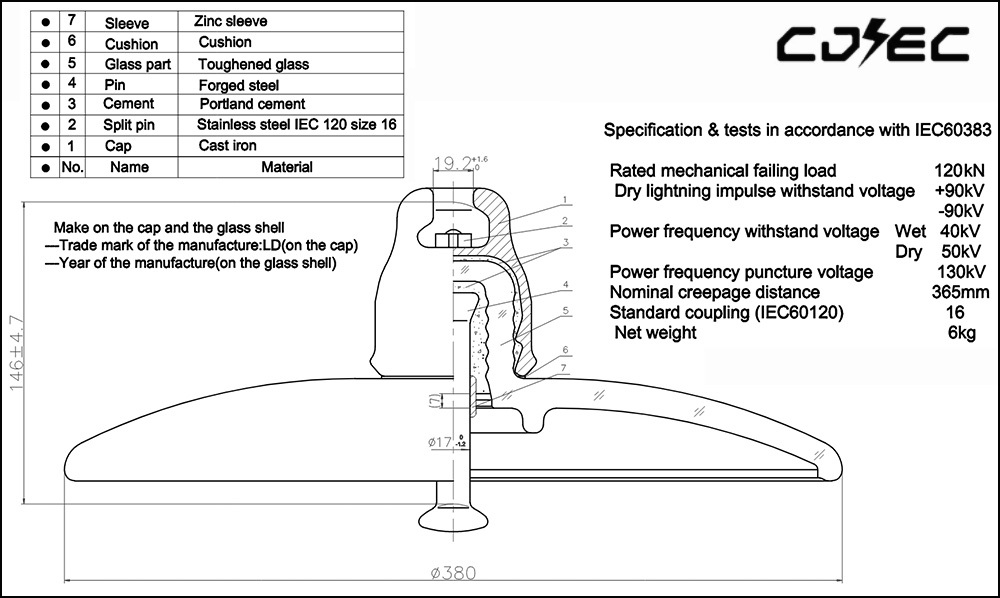

high voltage Aerodynamic type glass suspension insulator string
Domestic designation XYAY-70 XYAY-100  XYAY1-120 XYAY-120
D  Duaneter D mm 380 380 380 380
H  Spacing H mm 146 127 127 146
Creepage  L mm 365 365 365 365
Ball and socket soupling mm 16 16 16 16
Minimum mechanical failing load kn 70 70 70 70
Tension Strength kv 35 35 35 35
Power-frequency Wet kv 45 45 45 45
Lighting impulse withstand volatge kv 90 90 90 90
Impul sepuncture voltage kv 2.8 2.8 2.8 2.8
Power frequency puncture voltage kv 130 130 130 130
Radioinfluence voltage μv 50 50 50 50
Electric iron visual test kv 18/22 18/22 18/22 18/22
Power frequency electric arc volatge ka 0.12S/20kA 0.12S/20kA 0.12S/20kA 0.12S/20kA
Net weight kg 5.3 5.2 5.3 5
