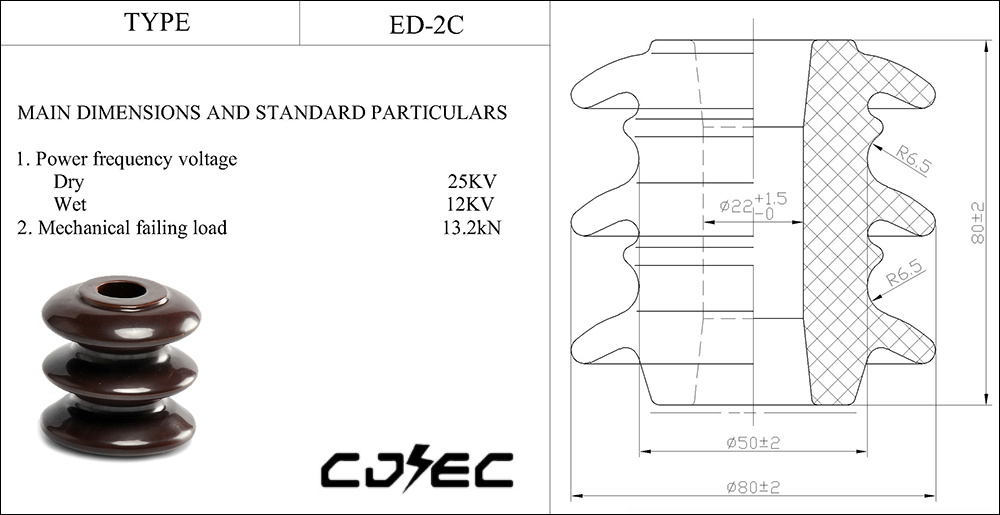

0.4kV shackle insulator with D-iron fittings ED-2C

Product classification:

Shackle insulators

Keywords:

Pin type insulators

Product Features

Product details

Shackle insulators
Type		ED-1	ED-2	ED-2B	ED-2C	ED-3	ED-4
Dimensions
Leakage distance	mm	70	64	64	68	54	51
Mechanical Values
Transverse Strength	kn	13.6	11.4	11.4	11.4	9.1	9.1
Electrical Values
Low frequency dry flashover voltage	kv	30	25	25	25	18	15
Low frequency wet flashover voltage	kv	17	13	13	13	10	8
Packing and Shipping Data
Net weight,approximate	kg	0.60	0.45	0.50	0.50	0.25	0.20
