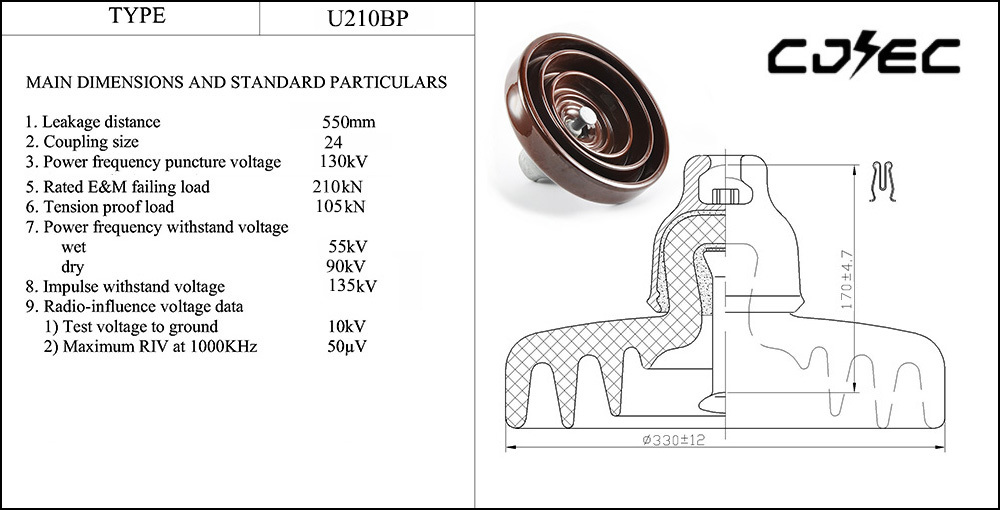

lsolator 210 kN Antifog Porcelain

Product classification:

Suspension porcelain insulators

Keywords:

Pin type insulators

Product Features

Product details

Fog type suspension porcelain insulators( IEC Class )
Type		XHP-70	XHP-70C	XHP-80	XHP-100	XHP1-120	XHP2-120	XHP-160	XHP1-160	XHP2-160	XHP-210	XHP-240	XHP-300
ICE Class		U70BLP	U70CP	U80BLP	U100BLP	U120BP1	U120BP2	U160BP	U160BSP	U160BLP	U210BP	U240BP	U300BP
Coupling size		16	16C	16	16	16	16	20	20	20	20/24	24	24
Dimensions
Diameter(D)	mm	255	255	255	255	255	280	330	330	330	330	330	360
Spacing(H)	mm	146	146	146	146	146	146	155	146	170	170	170	195
Leakage distance	mm	432	432	432	432	450	432	450	450	525	550	550	600
Mechanical Values
combined M&E strength	kn	70	70	80	100	120	120	160	160	160	210	240	300
Impact strength	nm	6	6	7	7	10	10	10	10	10	11.3	11.3	11.3
Routine proof test load	kn	35	35	40	50	60	60	80	80	80	105	120	150
Electrical Values
power frequency dry withstand voltage	kv	80	80	80	80	80	80	80	80	90	90	90	90
power frequency wet withstand voltage	kv	42	42	42	42	42	42	45	45	55	55	55	55
Dry lightning impulse withstand voltage	kv	120	120	120	120	120	120	120	120	135	135	135	135
power frequency puncture voltage	kv	120	120	120	120	120	120	130	130	130	130	130	130
Radio influence Voltage Data
Test voltage RMS to ground	kv	10	10	10	10	10	10	10	10	10	10	10	10
Maximum RIV at 1000kHz	μv	50	50	50	50	50	50	50	50	50	50	50	50
Packing and Shipping Data
Net weight,approximate	kg	6.1	6.3	6.5	7.9	8.5	8.2	11.7	12	12.6	14.5	15.2	15.7
