Product details

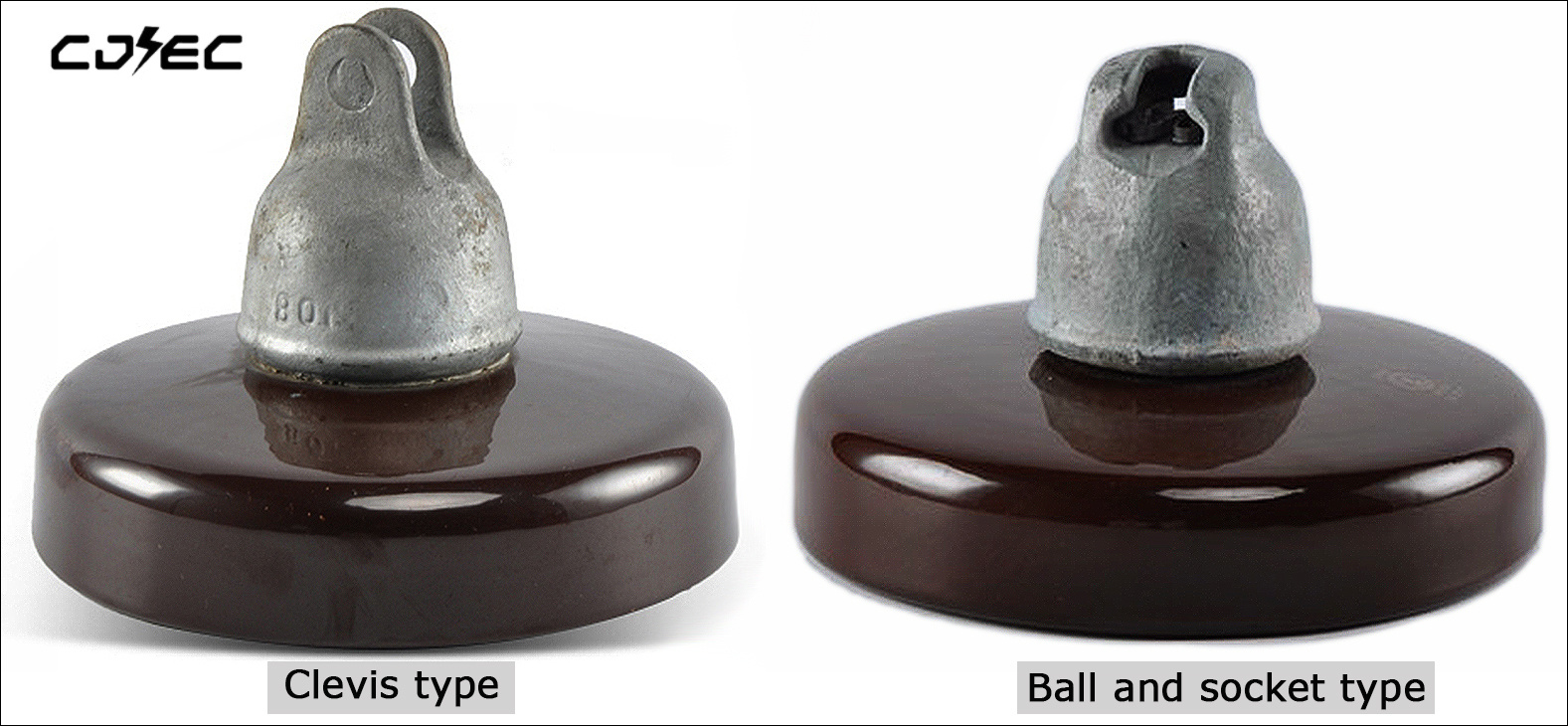

| Fog type suspension porcelain insulators( IEC Class ) | |||

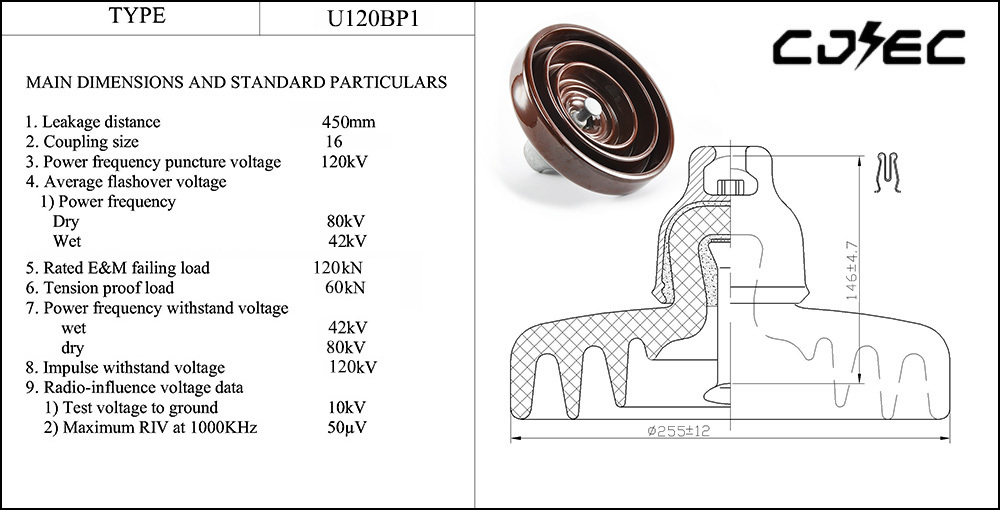

| Type | XHP1-120 | XHP2-120 | |
| ICE Class | U120BP1 | U120BP2 | |
| Coupling size | 16 | 16 | |
| Dimensions | |||
| Diameter(D) | mm | 255 | 280 |
| Spacing(H) | mm | 146 | 146 |
| Leakage distance | mm | 450 | 432 |
| Mechanical Values | |||
| combined M&E strength | kn | 120 | 120 |
| Impact strength | nm | 10 | 10 |
| Routine proof test load | kn | 60 | 60 |
| Electrical Values | |||
| power frequency dry withstand voltage | kv | 80 | 80 |
| power frequency wet withstand voltage | kv | 42 | 42 |
| Dry lightning impulse withstand voltage | kv | 120 | 120 |
| power frequency puncture voltage | kv | 120 | 120 |
| Radio influence Voltage Data | |||
| Test voltage RMS to ground | kv | 10 | 10 |
| Maximum RIV at 1000kHz | μv | 50 | 50 |
| Packing and Shipping Data | |||
| Net weight,approximate | kg | 8.5 | 8.2 |
