High Voltage 100kn Disc Suspension Toughened Glass Insulator U100B
Product classification:
Glass insulators
Product Center
Keywords:
Pin type insulators
Product Features
Product details

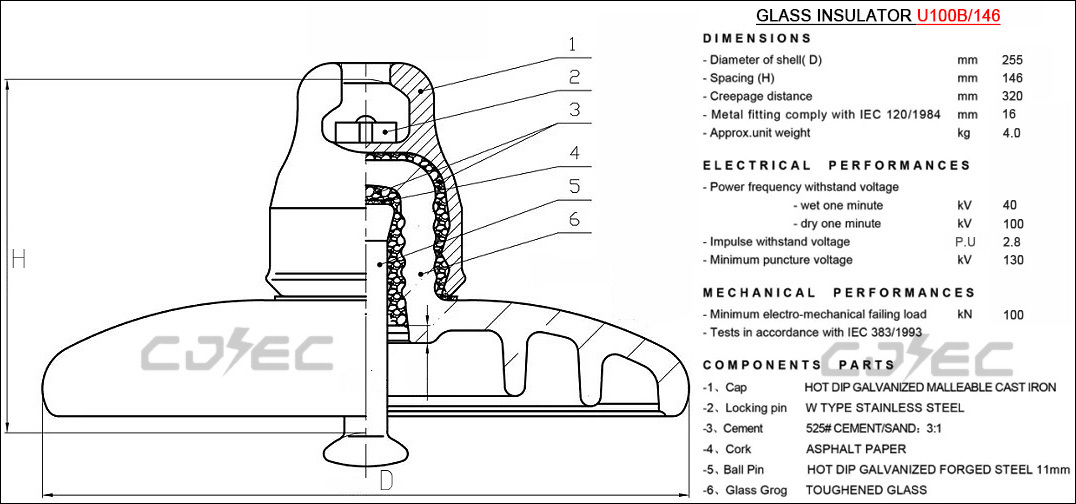

| IEC designation | U100B/146 | U100B/127 | |
| Diameter D | mm | 255 | 255 |
| Height H | mm | 146 | 127 |
| Creepage distance L | mm | 320 | 320 |
| Socket coupling | mm | 16 | 16 |
| Mechanical failing load | kn | 100 | 100 |
| Mechanical routine test | kn | 50 | 50 |
| Wet power frequency withstand voltage | kv | 40 | 40 |
| Dry lightning impulse withstand voltage | kv | 100 | 100 |
| Impulse puncture voltage | P.U | 2.8 | 2.8 |
| Power frequency puncture voltage | kv | 130 | 130 |
| Radio influence voltage | μv | 50 | 50 |
| Corona visual test | kv | 18/22 | 18/22 |
| Power frequency electric arc voltage | ka | 0.12s/20kA | 0.12s/20kA |
| Net weight per unit | kg | 4 | 4 |
High Voltage 100kN Disc Suspension Toughened Glass Insulator U100B is an essential component in high voltage power transmission lines. It is designed to withstand the extreme electrical and mechanical stresses that occur in these systems, ensuring safe and reliable operation.
The U100B insulator is rated for a maximum mechanical load of 100kN, making it suitable for use in heavy-duty transmission lines. Its disc suspension design allows it to support the weight of the conductors while providing electrical insulation between them and the supporting structure.
One of the key features of the U100B insulator is its toughened glass construction. Toughened glass is a type of safety glass that has been treated to increase its strength and durability. This makes the insulator highly resistant to cracking or breaking under load, even in harsh weather conditions.
In addition to its mechanical strength, the U100B insulator also offers excellent electrical insulation properties. It is designed to withstand high voltage levels without leaking or arcing, ensuring the safety and reliability of the power transmission system.
Overall, the High Voltage 100kN Disc Suspension Toughened Glass Insulator U100B is a reliable and durable solution for high voltage power transmission applications. Its robust construction, combined with its excellent electrical insulation properties, makes it an ideal choice for ensuring the efficient and safe operation of transmission lines.
